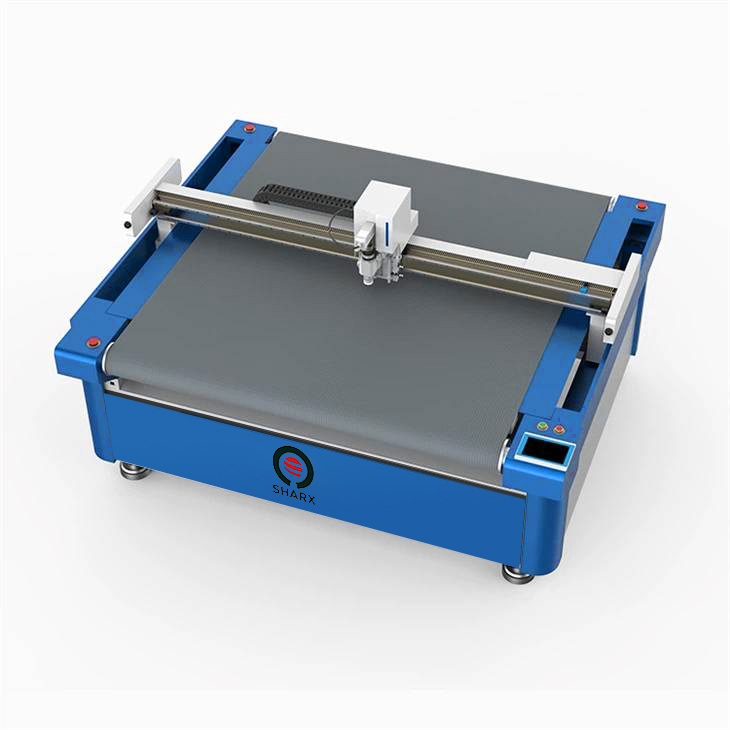

CK1610 Digital Cutting Machine
Compact digital cutting for foam, fabric, leather,cardboard,acoustic panel and other flexible materials, with a 1600 × 1000 mm working area. Configure the cutting tools to suit your materials and production needs.
CK1610 Compact Digital Cutting for Flexible Materials
The SHARX CK1610 digital cutting machine combines a 1600 × 1000 mm working area with versatile cutting tool options for processing foam, fabric, leather, cardboard and other suitable materials.
1600 × 1000 mm
Working Area for Flexible Production
Cold Cutting
Mechanical cutting without heat-related burning or melting.
Multi-Material
Foam | Fabric | Leather | Cardboard | Acoustic panels
No Cutting Dies
Cut custom shapes directly from digital files without dedicated dies
What materials can it process

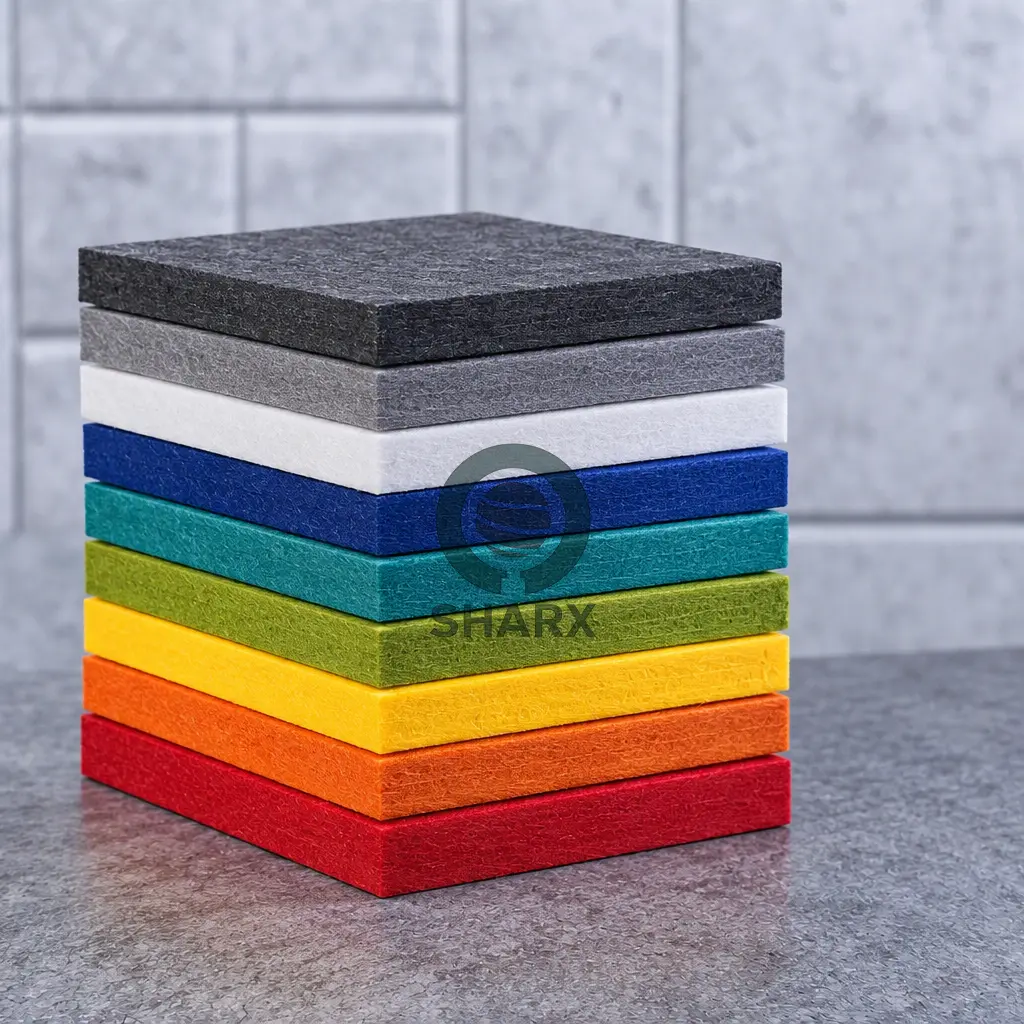

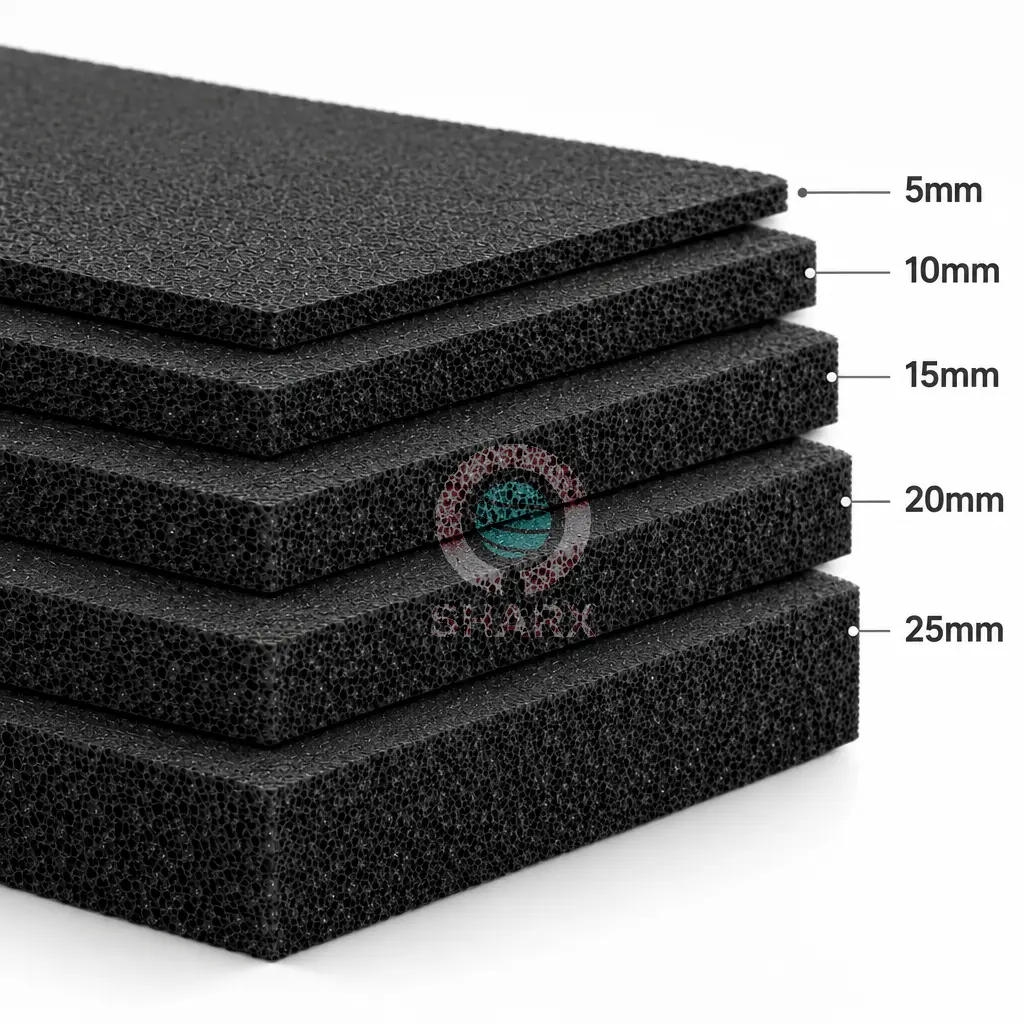

Acoustic Panels
Polyester fiber, felt and foam materials.

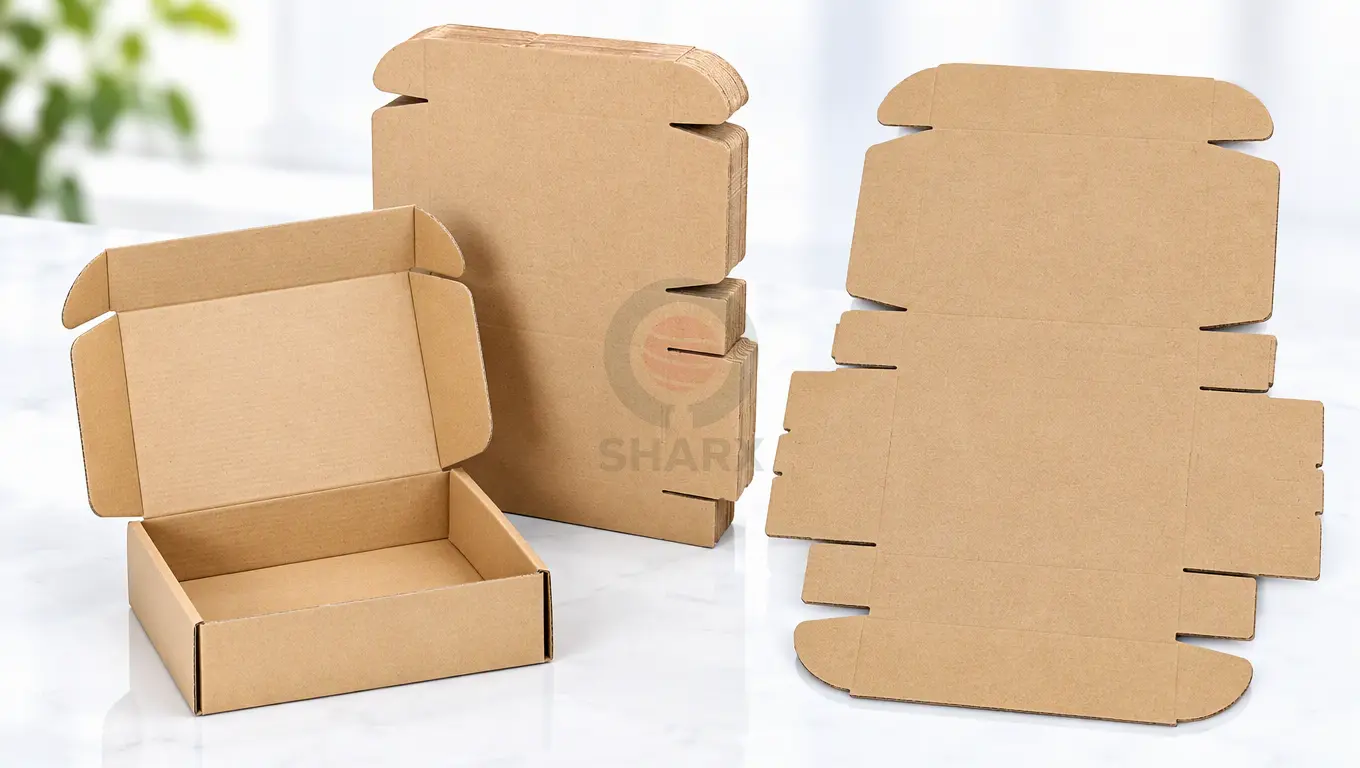

Packaging

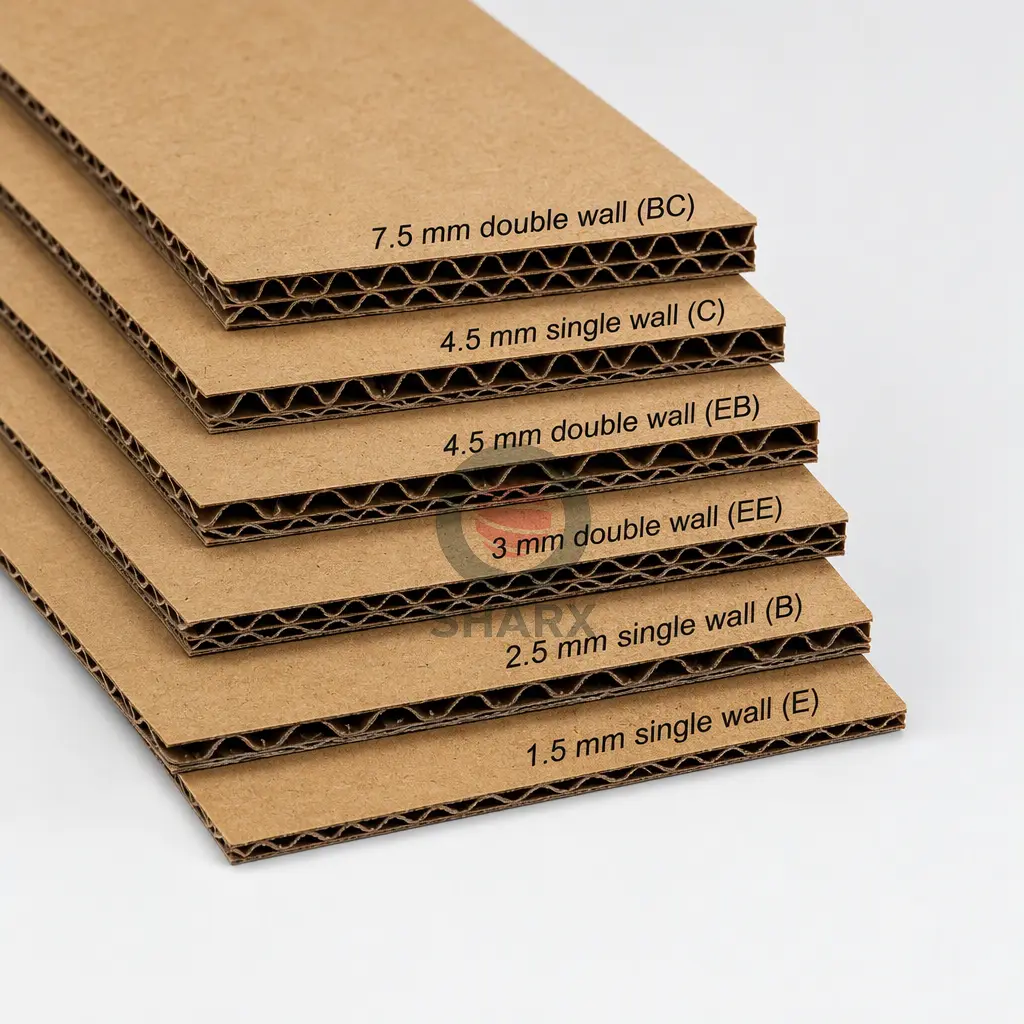

Cardboard, honeycomb board and packaging prototypes.

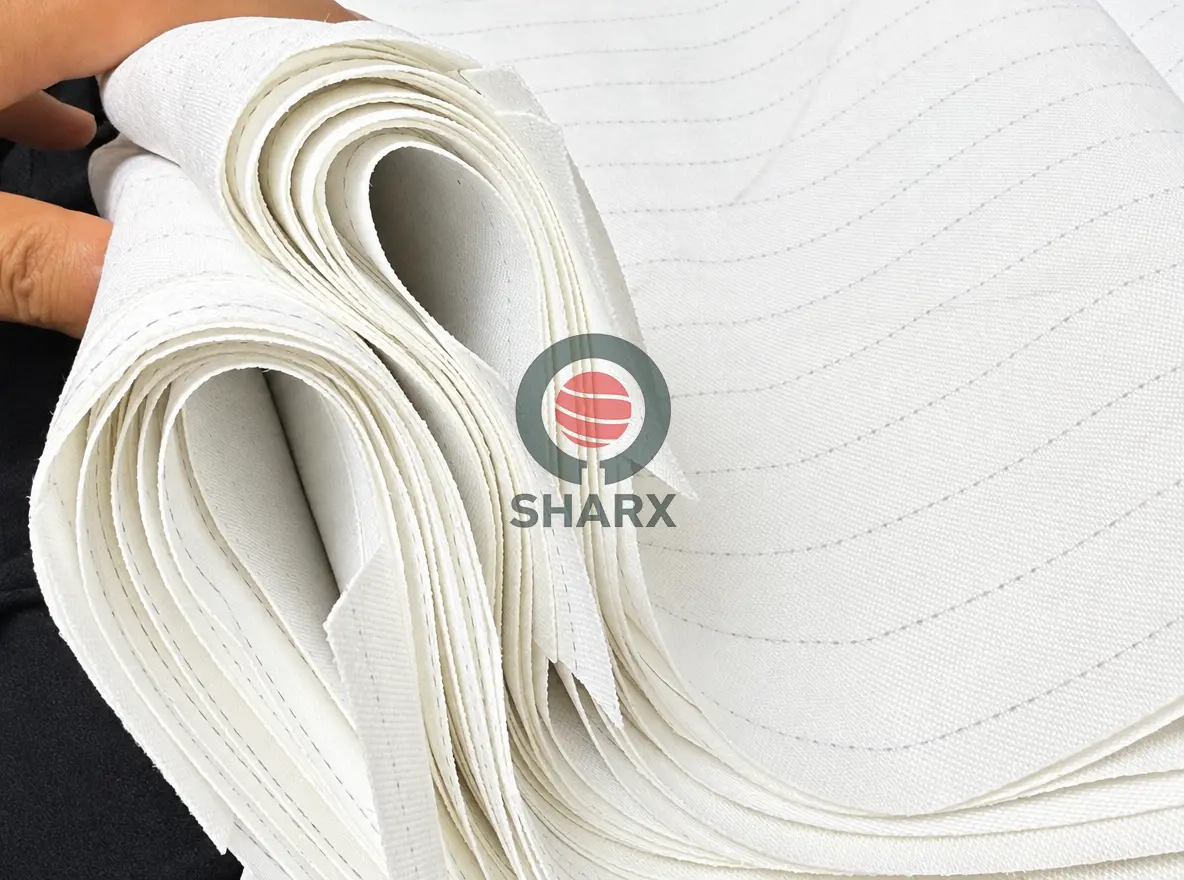

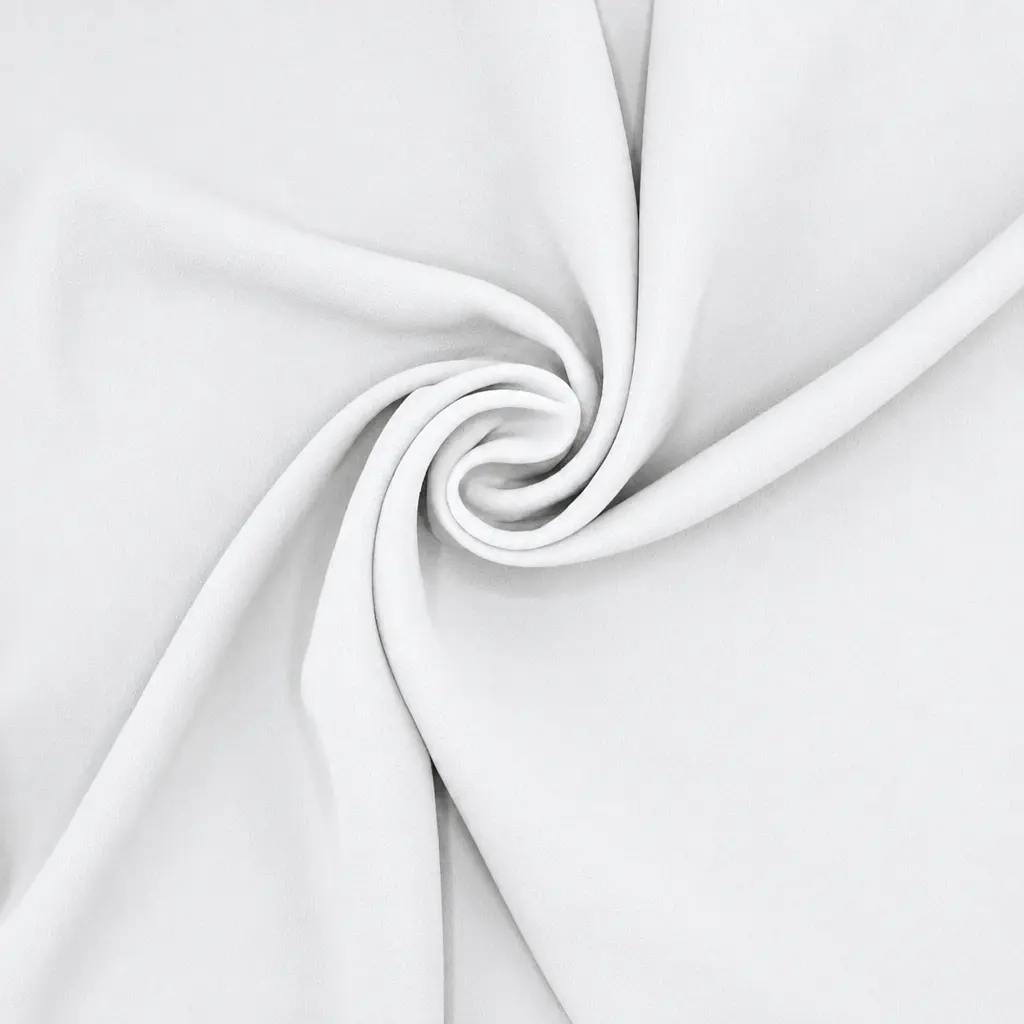

Textile
Fabric, felt, canvas and non-woven materials.

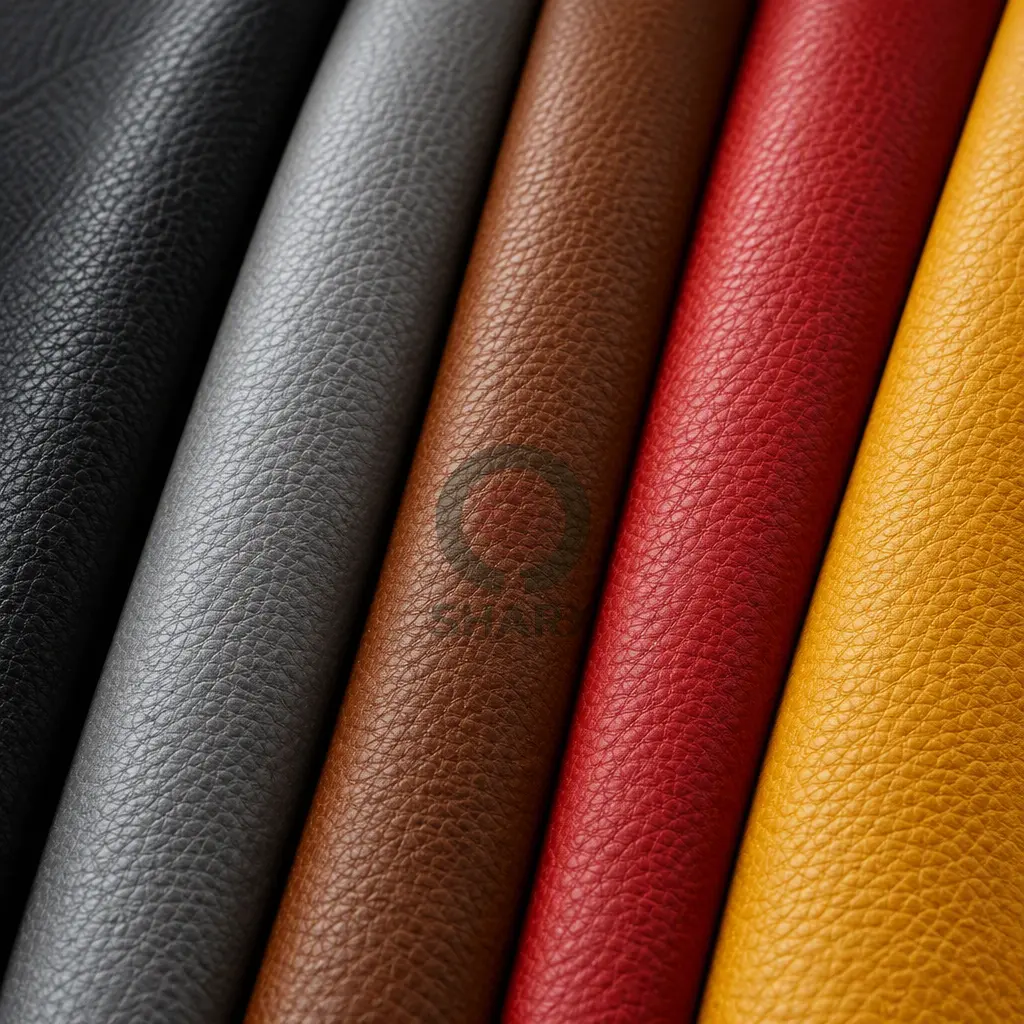

Leather
Leather, PU leather and upholstery materials.
Automotive
Interior materials and insulation products.

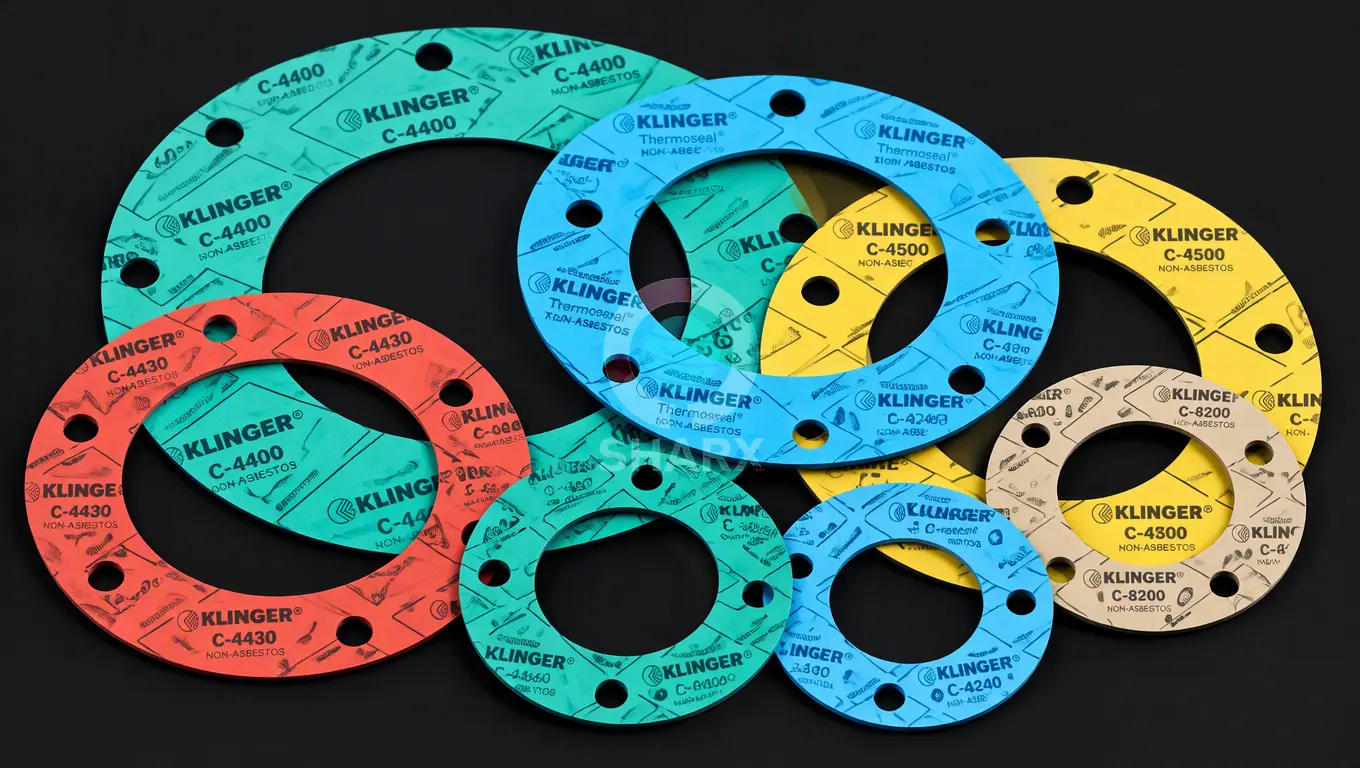

Industrial Materials

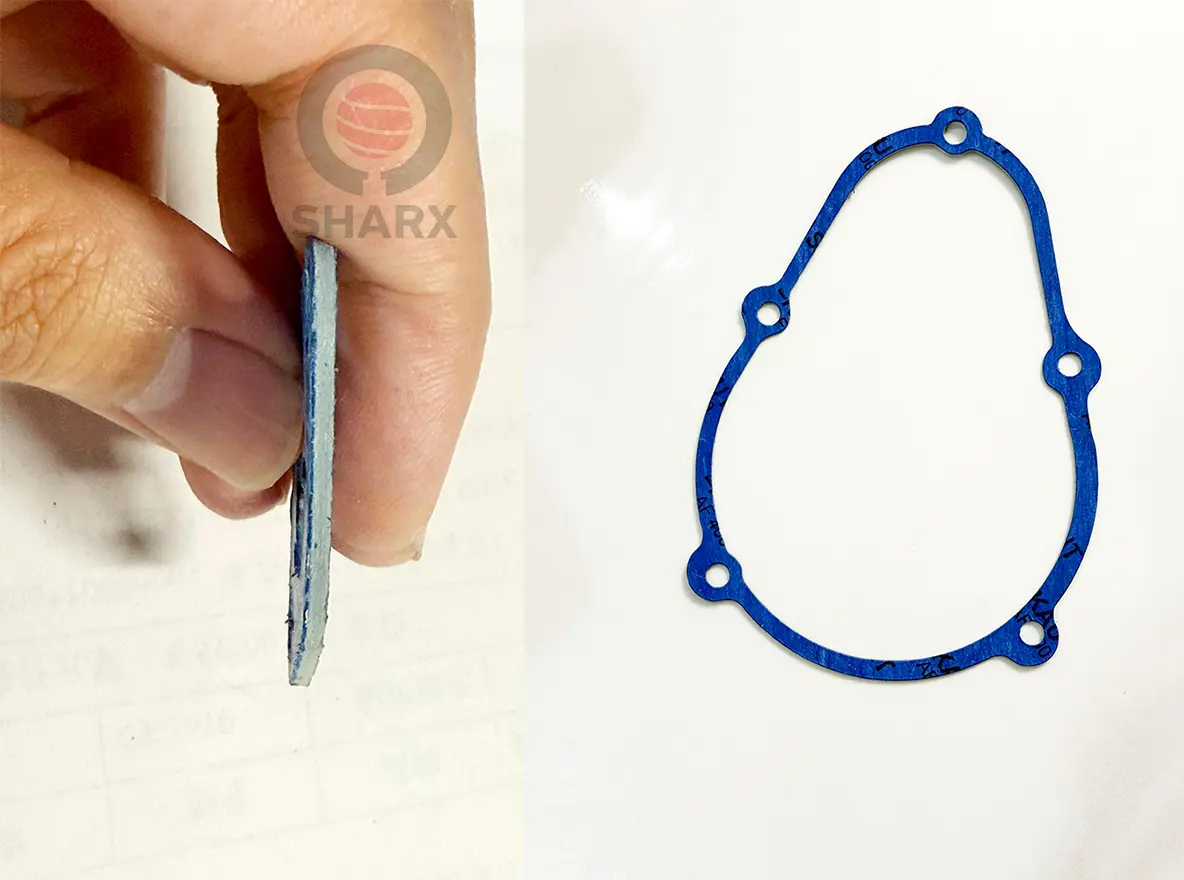

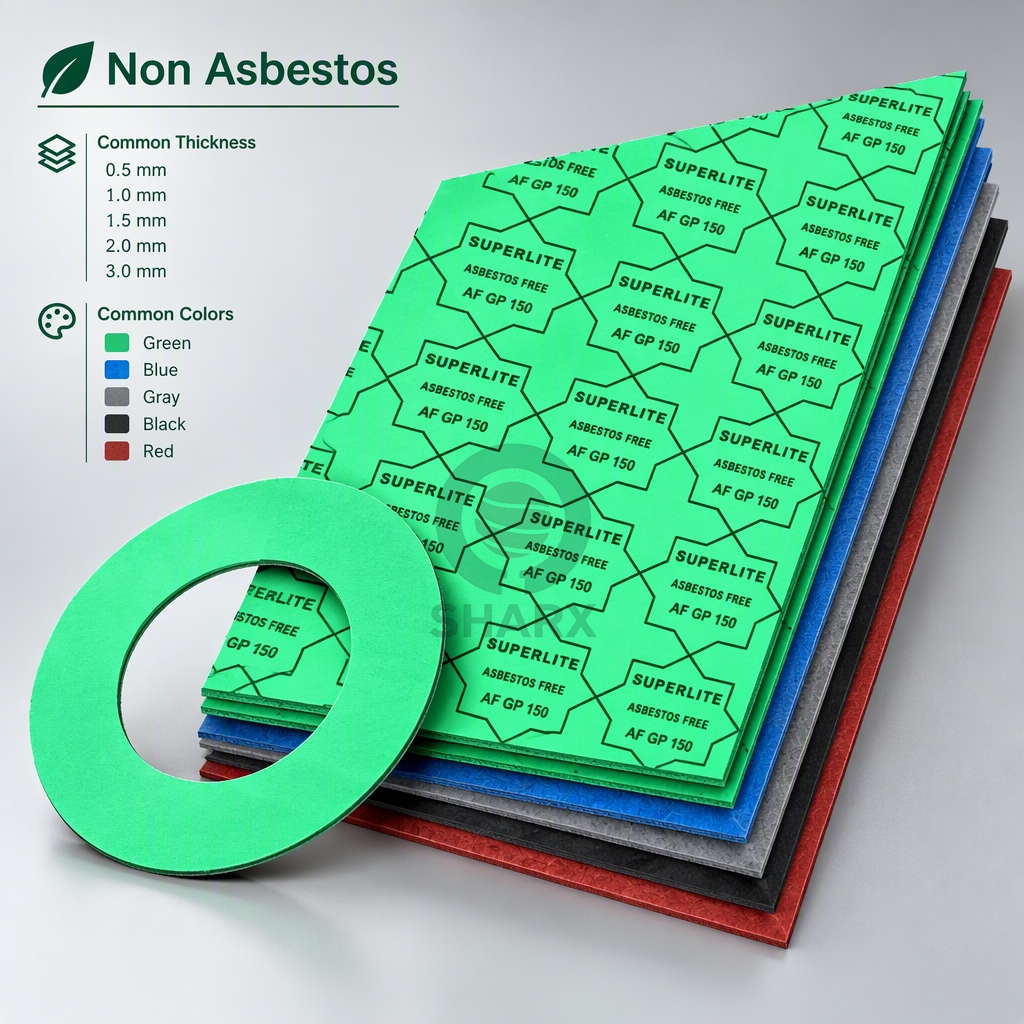

Rubber, gasket and composite materials.
What Application / Uses it can make

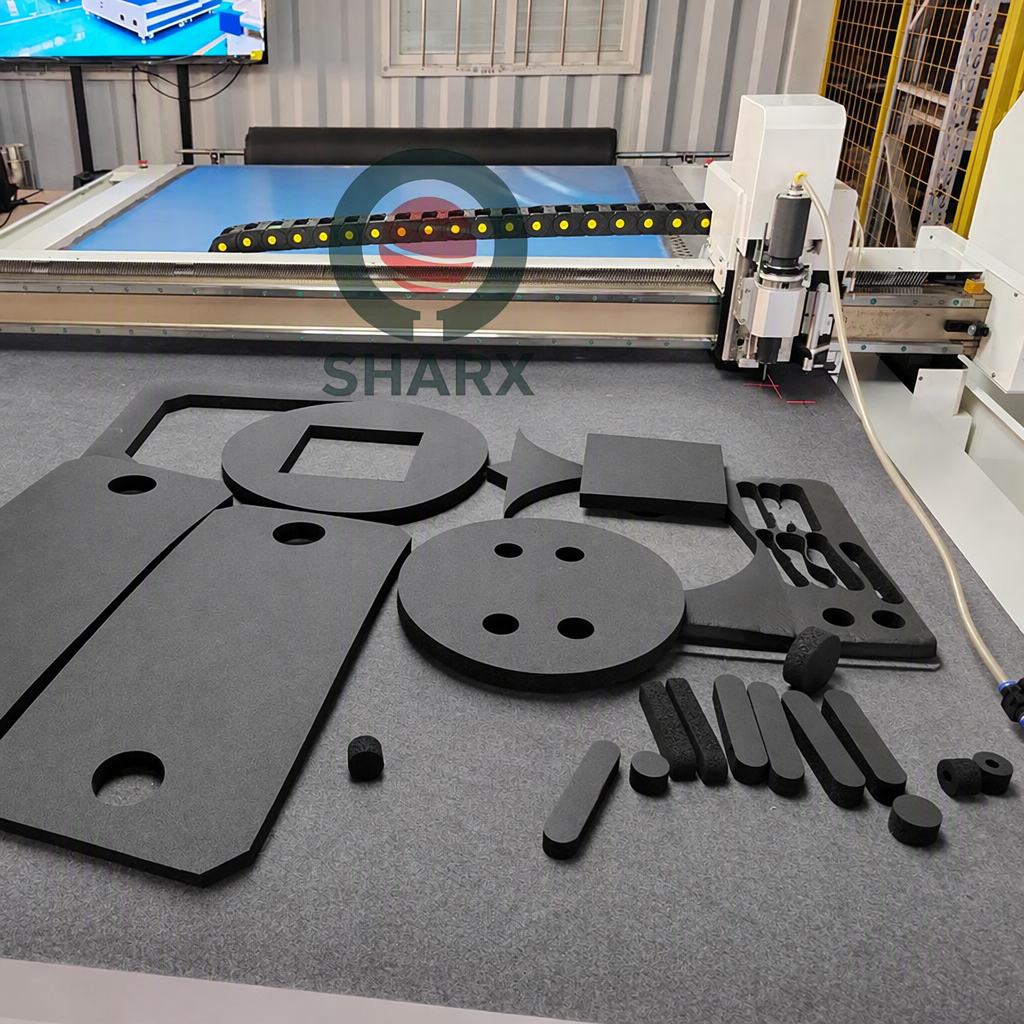

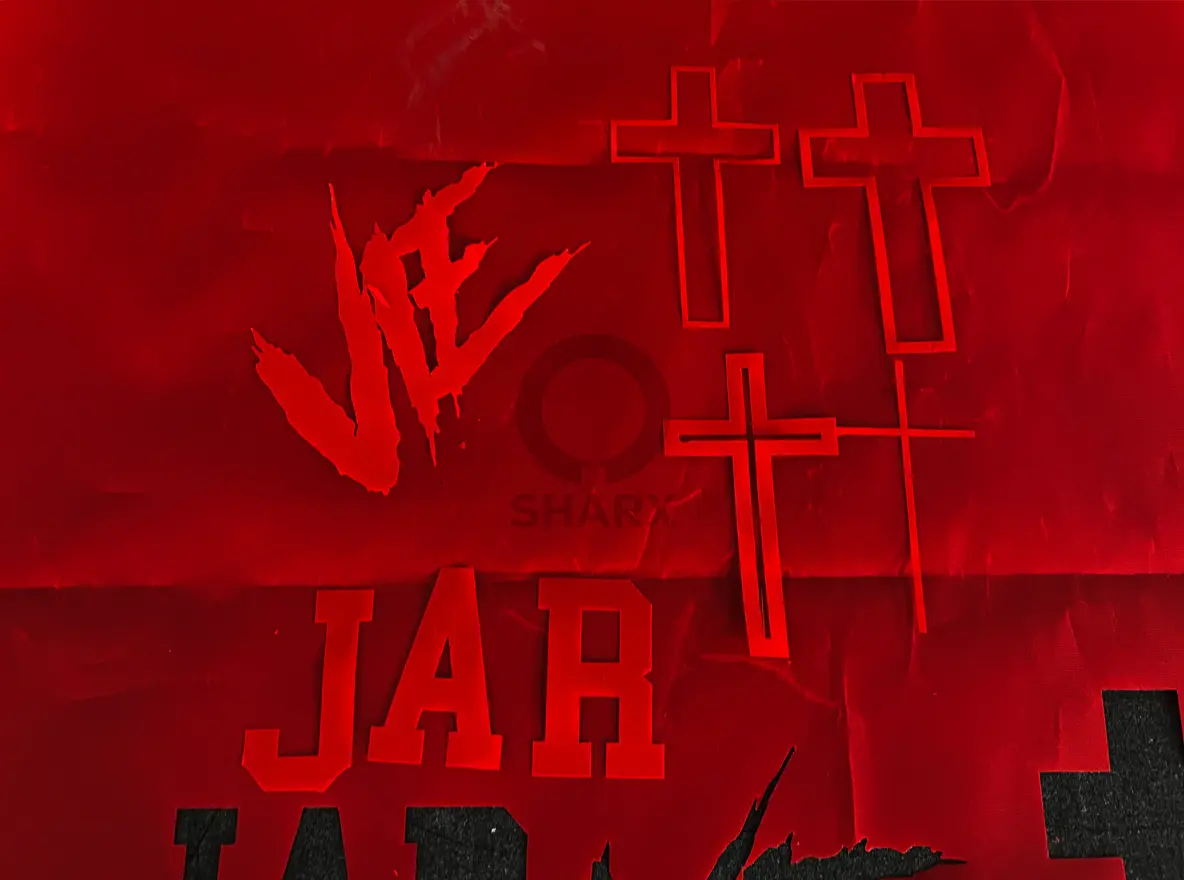

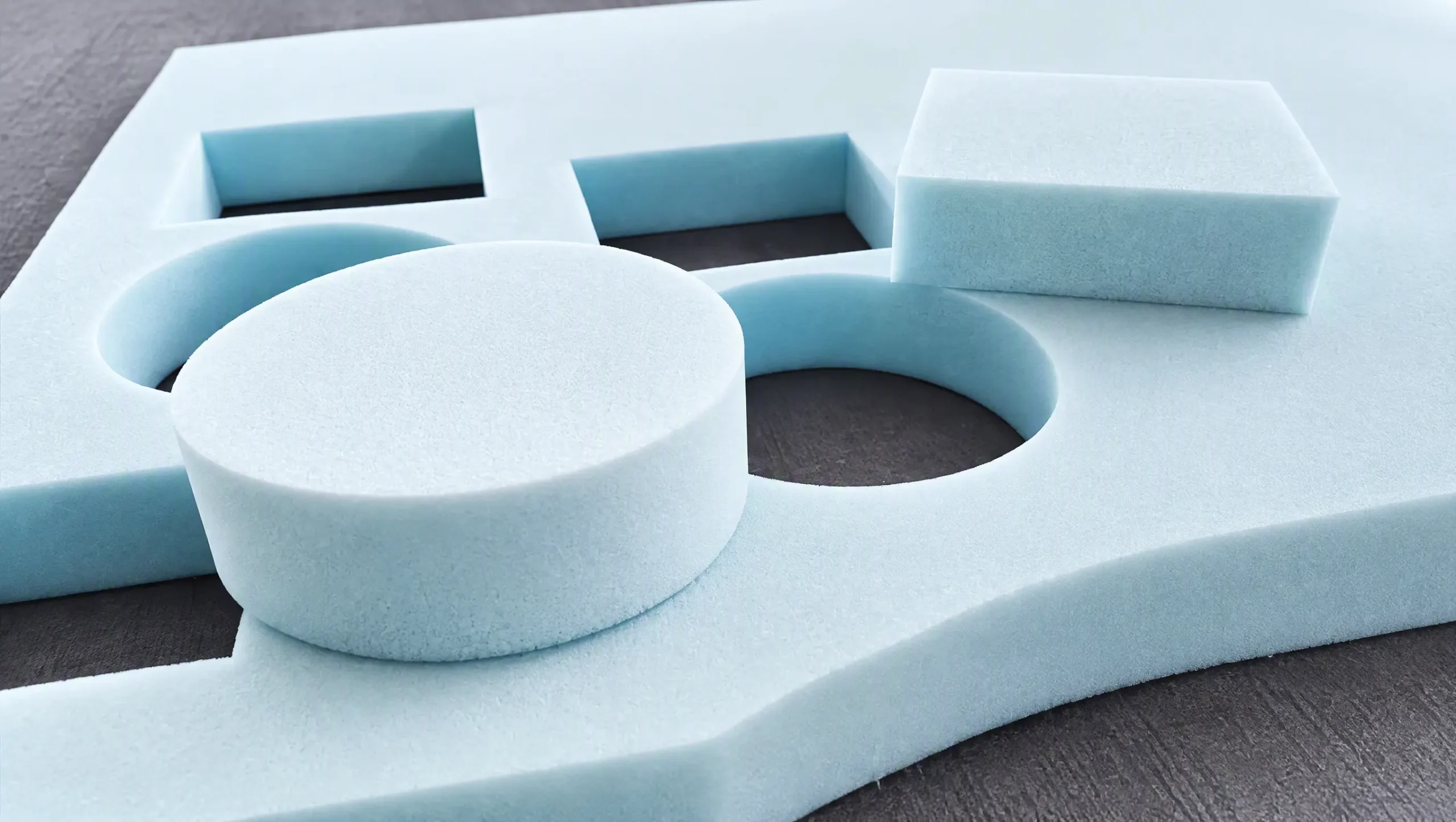

Real Cutting results
KEY FEATURES
Versatile Material Cutting
Cut fabric, leather, foam, cardboard and other flexible materials.
Clean & Precise Cutting
Oscillating knife cutting without burning, melting or laser-affected edges.
Efficient Production
Designed for fast, repeatable cutting in small-batch and production workflows.
Stable Material Holding
Vacuum table keeps materials securely in place during cutting.
Knife System

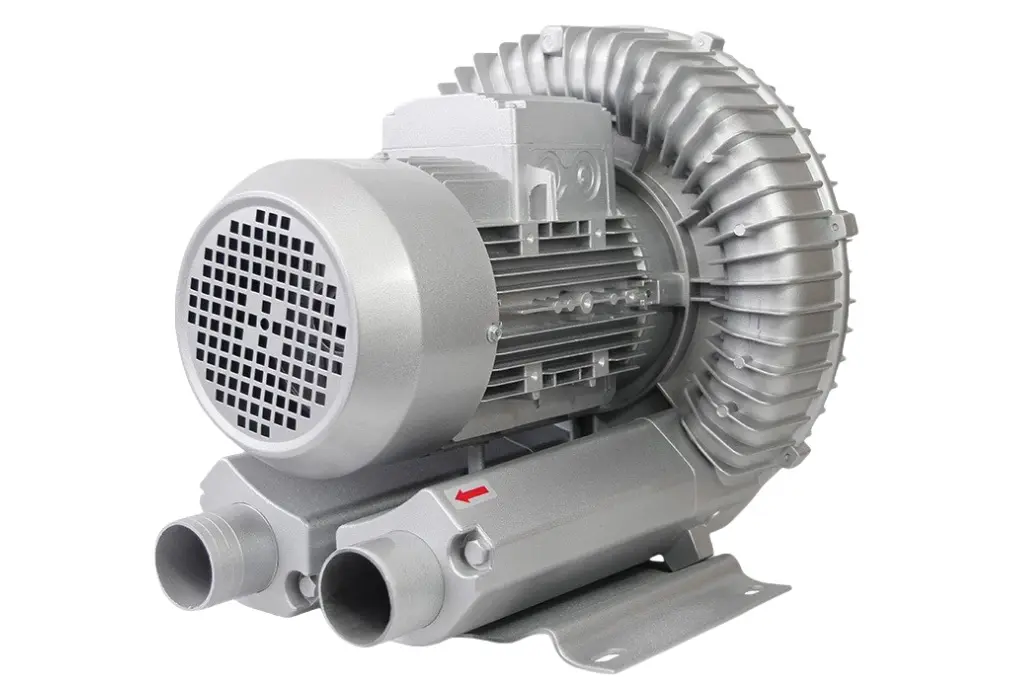

Vacuum Holding System

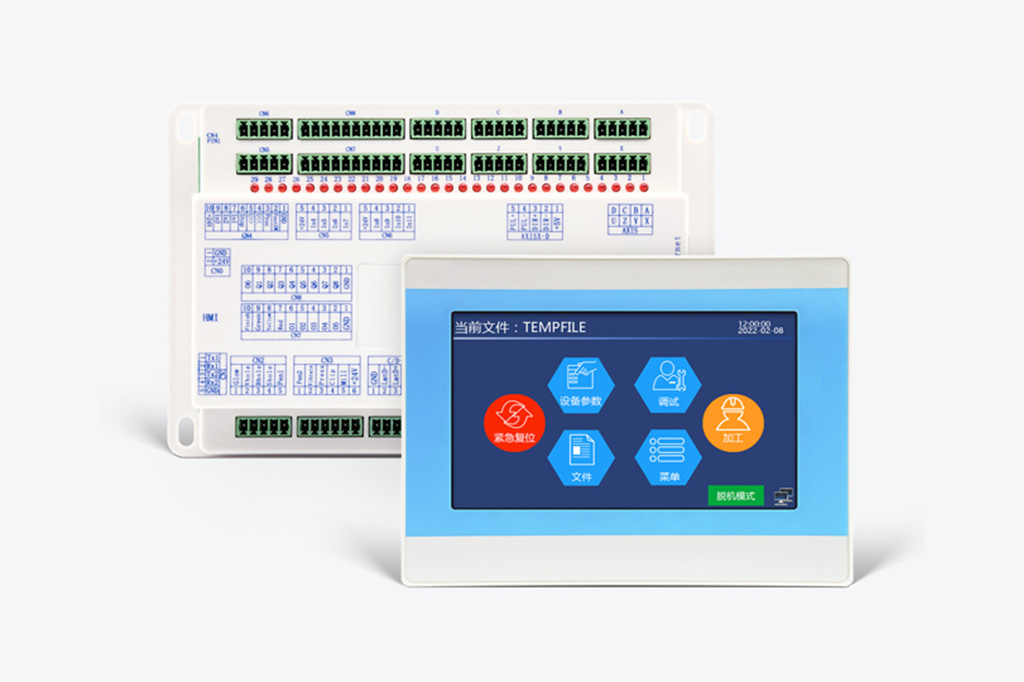

Controller

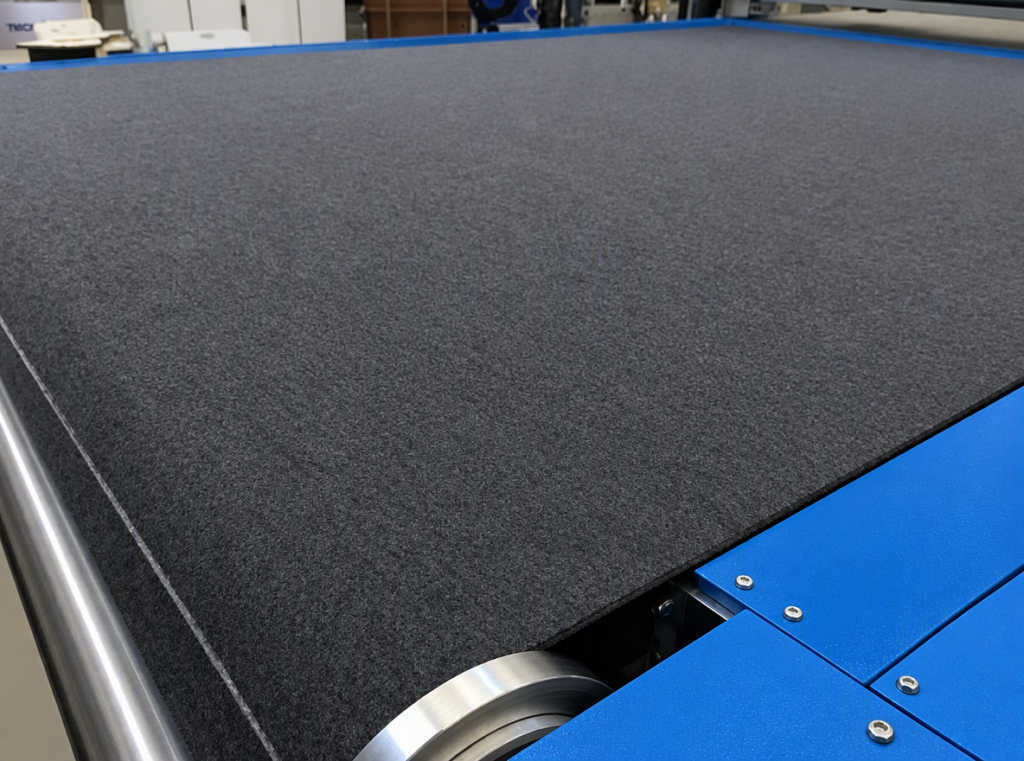

Auto Feeding
Technical Specifications & Machine Configuration
Review standard equipment, technical details and available upgrades for each model.
| Item | Description |
|---|---|
| Cutting Head | Electric Oscillating knife cutting head with automatic up/down movement |
| Tool System | Interchangeable cutting tools for different materials |
| Control System | Industrial CNC controller with digital cutting software VcutWorks |
| Drive System | High precision Delta servo motors system |

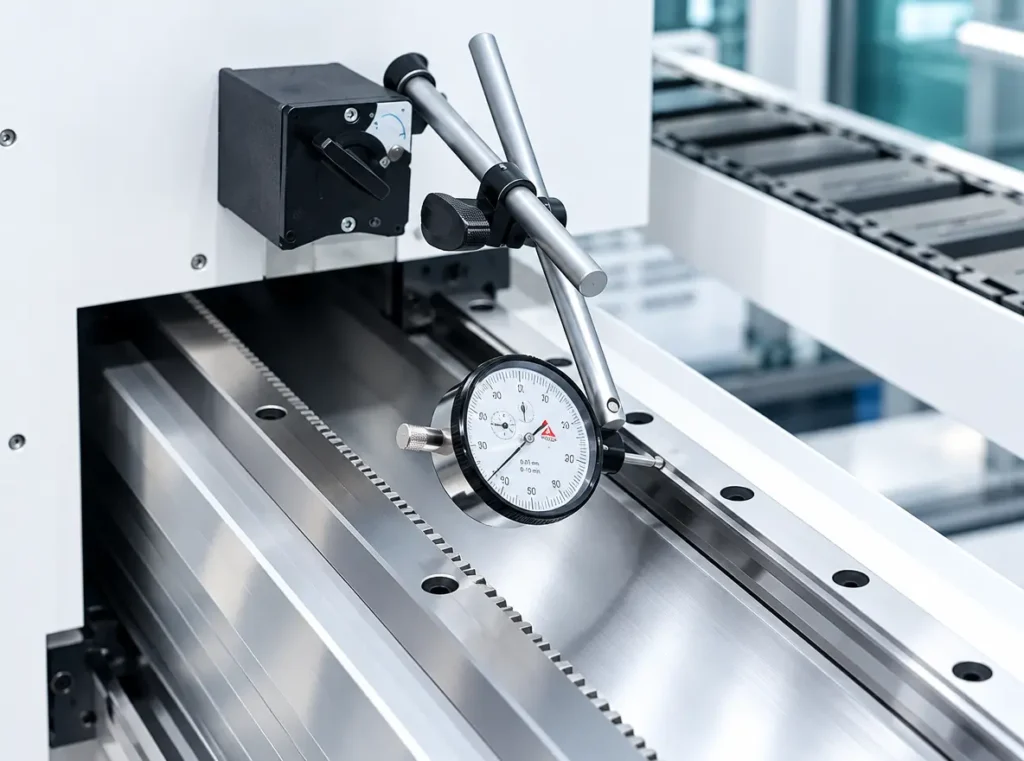

| Transmission | Rack and pinion / linear guide system |
| Working Table | Vacuum table for stable material fixing |
| Material Fixing | Vacuum adsorption system prevents material movement |
| Software | Compatible with DXF, AI, PLT and other design formats |
| Safety System | Emergency stop, protection sensors and safety functions |
| Item | Specification |
|---|---|
| Working Area | 1600 × 1000 mm (Other options like 1600x1500mmand more sizes are available) |
| Cutting Tool | Electric Oscillating Knife |
| Cutting Speed | Up to 1500 mm/s |
| Cutting Accuracy | ±0.1 mm |
| Material Thickness | Up to 50 mm (depending on material) |
| Drive Motor | Delta Servo motor |
| Vacuum Pump | 4.4 kW |
| Power Supply | AC 220V / 380V |
| Machine Size | 1850*2170*1300 mm,800KG |
| Software | Digital cutting software VcutWorks |
Camera Recognition System
Advanced vision system for automatic positioning and contour cutting of printed materials, improving cutting accuracy and production efficiency.
Available options:
- Large CCD camera system for full-area recognition
- Small CCD camera positioning system
Leather Recognition System
Specialized camera and software system for automatic recognition and cutting of irregular genuine leather shapes.
Projection System
Projects cutting layouts and positioning information onto the working area, helping operators quickly locate materials and improve workflow efficiency.
Panasonic Servo Drive Upgrade
Upgraded motion control system with Panasonic servo motors for higher precision, smoother operation and improved stability.
Extended Working Platform (Pick-Up Platform)
Extended collection platform for receiving finished parts after cutting, improving continuous production efficiency..
Available extensions:
- 1.2m extension platform
- 2m extension platform
- 3m extension platform
Higher Gantry Clearance
Increased working height for processing thicker materials or special applications,maximum 100mm.
Split Machine Structure
Separate machine bed design for large-format machines, making transportation and installation easier.
Additional gantry
Additional gantry option for multi-head configurations and customized production requirements.
Auto film covering Device
Optional covering system for multi-layer materials and special production processes.
Material Feeding Options
Single-Ply Automatic Fabric Unwinding System
Automatic fabric unwinding with edge alignment function for continuous and accurate cutting.
8-Ply Automatic Fabric Feeding System
Electric multi-layer fabric feeding system designed for high-efficiency textile cutting production.

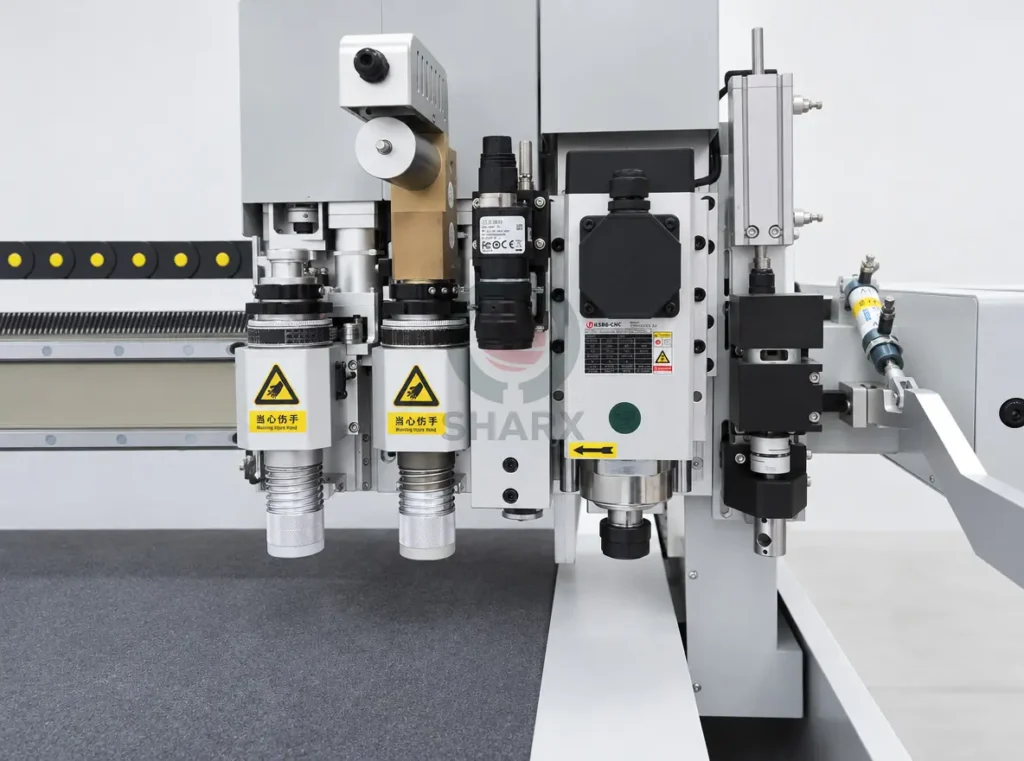

Additional Cutting Heads
Multiple cutting heads can be installed for different production requirements.
Benefits:
- Different tools in one machine
- Higher production efficiency
- Reduced tool changing time
Electric Oscillating Knife (Standard)
High-frequency cutting tool for flexible and semi-rigid materials.
Suitable for:
- Leather
- Foam
- Felt
- Carpet
- Acoustic materials
Pneumatic Oscillating Knife
Higher-power oscillating cutting solution for thicker and harder materials.
400w Servo motor driven Oscillating Knife
High-performance cutting head with servo drive for demanding industrial applications.
Drag Knife
Suitable for thin and flexible materials.
Applications:
- Vinyl
- Film
- Paper
Creasing Wheel
For creating folding lines on packaging materials.
V-Cut Knife
For V-groove cutting applications.
Rotary Knife
For continuous cutting of textiles and flexible materials.
Kiss Cut Knife
For cutting the surface layer without cutting through the backing material.
Punching Tool
Includes round punching and V/linear punching tools for hole and perforation processing.
Milling Spindle
For rigid materials requiring milling processes.
Marking Pen Tool
For drawing marking lines or design confirmation.
How It Works
From Digital File to Finished Product
5 Steps：
- 01 Design your drawings
- 02 The drawing is imported to Software Vcut
- 03 Set tool and speed and download it to the machine
- 04 Material placing and Fixing
- 05 Start Cutting
- 06 Finished Parts
FROM CHINA TO YOUR WORKSHOP
Packaging → Shipping → Delivery
Shipping
Sea freight
LCL / FCL
DAP / DDP available
Warranty
12-24 months warranty
Parts coverage
Warranty terms
Support
Remote installation
Training
Troubleshooting
Spare parts
FAQ
01. What materials can an oscillating knife cutting machine cut?
Answer：
An oscillating knife cutting machine can cut a wide range of soft and semi-rigid materials, including foam, felt, acoustic panels, cardboard, corrugated materials, leather, fabric, carpet, rubber, gasket materials, and other flexible materials. The suitable blade depends on the material type, thickness, density, and cutting requirements.
02. What products can an oscillating knife cutting machine be used to make?
Answer：
It can be used for cutting acoustic panels, packaging materials, foam products, leather goods, textile products, carpets, gaskets, insulation materials, advertising materials, and various custom-shaped parts. It is suitable for both prototype production and regular production.
03. How thick can an oscillating knife cutter cut?
Answer：
The maximum cutting thickness depends on the material, density, hardness, blade type, and cutting method. Different materials require different blades and cutting parameters. For thick or dense materials, we recommend a cutting test to determine the most suitable configuration.
04. How do I choose the right cutting tool for my material?
Answer：
Different materials require different blades and cutting tools. For example, straight blades are commonly used for fabrics and flexible materials, while other blade types are available for foam, cardboard, leather, and thicker materials. We can recommend the appropriate tool based on your material, thickness, and application.
05. What is the difference between an oscillating knife cutter and a laser cutter?
Answer：
An oscillating knife cutter uses a mechanical blade, while a laser cutter uses a focused laser beam. Knife cutting is particularly suitable for materials that may melt, burn, or produce unwanted edges when laser cut, such as foam, felt, fabric, leather, and many acoustic materials.
06. Can an oscillating knife cutter cut multiple layers of material?
Answer：
Yes. Multiple layers can be cut depending on the material, total thickness, blade type, and required cutting accuracy. For layered cutting, the material must be properly fixed and the cutting parameters optimized. We recommend testing your actual material before production.
07. Can an oscillating knife cutter cut roll materials?
Answer：
Yes. Roll materials can be processed with an automatic feeding or unwinding system. The suitable feeding configuration depends on the material width, roll weight, material characteristics, and production requirements.
08. Can an oscillating knife cutter cut printed materials?
Answer：
Yes. With an optional camera or vision positioning system, the machine can recognize printed marks, contours, or registration points and accurately cut printed materials. This is useful for applications such as printed textiles, advertising materials, and customized products.
09. What software and file formats are supported?
Answer：
The machine can work with commonly used vector design and cutting files, such as DXF, PLT,AI, and PDF, depending on the software configuration. Existing designs can be imported into the cutting software and converted into cutting paths.
10. Does an oscillating knife cutter require a vacuum table?
Answer：
A vacuum table is recommended for many applications because it holds the material firmly during cutting and helps prevent movement or distortion. The required vacuum configuration depends on the material and application.
11.What is the working area of the CK1610?
Answer：
The CK1625 has a working area of 1600 × 1000 mm, making it suitable for processing large sheets, panels, and flexible materials without requiring the material to be cut into smaller sections first.
We can provide the packing dimensions, gross weight and shipping information and help arrange a suitable logistics solution.
Shipping costs depend on the destination, shipment size and selected shipping method.
12. Can the machine be customized for different applications?
Answer：
Yes. The machine can be configured with different cutting tools and optional systems according to the material and application. Options may include camera positioning, automatic feeding or unwinding, different blade types, and other application-specific configurations.
13. How accurate is an oscillating knife cutting machine?
Answer：
Cutting accuracy depends on the material, thickness, blade type, machine configuration, and cutting speed. For demanding applications, the machine should be tested with the customer’s actual material to determine the achievable accuracy and optimal cutting parameters.
14. Is an oscillating knife cutting machine difficult to operate?
Answer：
No. After the cutting file is prepared, the operator mainly needs to position the material, select the appropriate cutting tool and parameters, and start the cutting process. We provide operation guidance and training to help users get started.
The exact service scope and cost depend on the destination country, delivery address and agreed shipping terms and will be confirmed in the quotation.
15.What maintenance does an oscillating knife cutting machine require?
Answer：
Routine maintenance mainly includes keeping the cutting table clean, checking and replacing blades when necessary, cleaning moving components, and inspecting the vacuum and transmission systems. Regular maintenance helps maintain stable cutting performance and extend machine service life.
16.Do you provide installation, training, and technical support?
Answer：
Yes. We provide installation guidance, operation training, and technical support after delivery. Our team can also assist with cutting parameters, tool selection, and troubleshooting based on the customer’s material and application.
17. What warranty do you provide for the machine?
Answer：
We provide a 2-year warranty for the machine. During the warranty period, we provide technical support and replacement parts for issues covered by the warranty. Consumable parts, such as blades, are normally not covered by the warranty.
18. What is the delivery time for the machine?
Answer：
The standard production time is approximately 7–14 working days, depending on the machine configuration and options. The exact lead time will be confirmed when the order is placed.
19. Can you test my material before I place an order?
Answer：
Yes. We recommend testing your actual material, especially when the material type, thickness, or cutting requirements are unusual. You can send us your material or samples, and we can evaluate the suitable blade, cutting parameters, and machine configuration.
20. What should I consider when choosing the right machine size?
Answer：
The machine size should be selected according to your material dimensions, required cutting area, production workflow, and available workspace. If you process roll materials or large panels, we recommend choosing a working area that minimizes repositioning and improves production efficiency.
